Reverse
Engineering Technology
is the process of probe digitizing (tracing) an existing part or pattern, two or three dimensionally or both, to acquire the exact shape data in electronic form. The surface data acquired can then be converted to usable data and imported into CAD for analyzing and creating CNC programs for part duplication. |
 |
|||||||||||||||||
|
A
further value is being able to quickly return your sample part to you
after digitizing, so halting your production is kept to a minimum while
we machine your new parts.
|
||||||||||||||||||
 |
||||||||||||||||||
| Scanning
accuracy and repeatability has consistently been .001" max for us,
even though the manufacturer claims only .002" accuracy. The machine can do a self-calibration just prior to a digitizing session and we can provide you with a copy of the accuracy report for your quality control records. |
||||||||||||||||||
 |
||||||||||||||||||
|
Renishaw

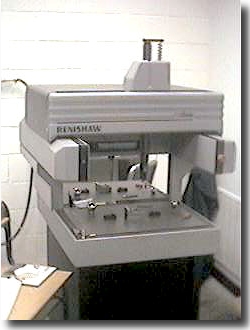

Cyclone Digitizer
|
||||||||||||||||||
|
Surface
Data being analyzed
|
||||||||||||||||||
|
